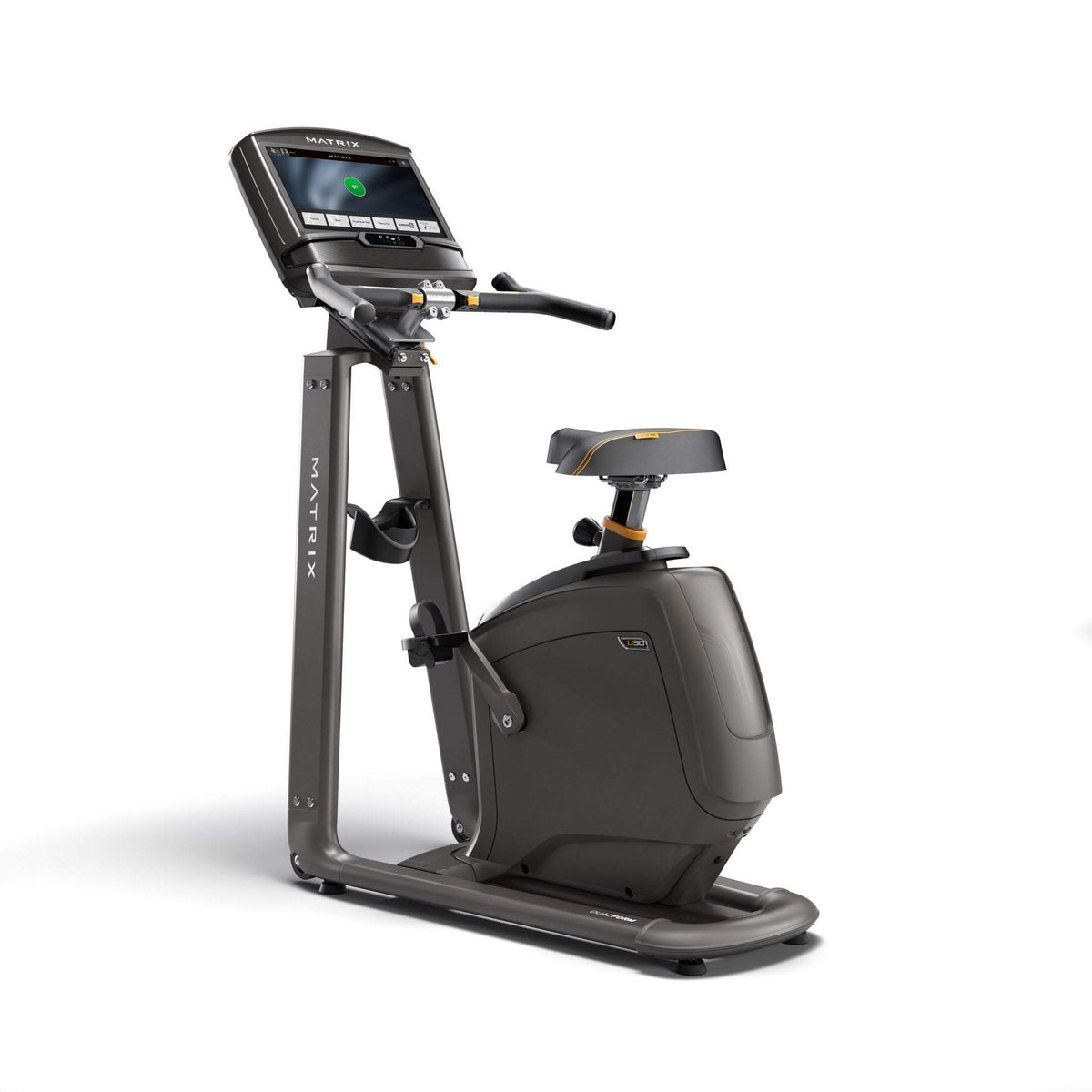

Matrix Upright Bike U30 XIR Console Touch Screen

FEATURES

A better ride by design. Attract more biking enthusiasts with the industry’s most stable, comfortable and versatile step-through bikes.

AT A GLANCE

Experience a better ride by design with the unmatched ergonomics of the industry’s most stable, comfortable and versatile step-through bike.

Our U30 Upright Bike includes our exclusive Dual Form Frame and Comfort Arc Seat.

DUAL FORM FRAME

Our Dual Form Frame significantly improves rider stability over single-post designs and offers a low step-through height for easy access.

COMFORT ARC SEAT

Our Comfort Arc Seat is ergonomically molded to provide unmatched comfort, support and balance during workouts.

EASILY CUSTOMIZABLE

You can attach standard outdoor handlebars, saddle and pedals to customize your cycle to your unique style and needs

SMART ERGONOMICS

An optimized Pedal Spacing (a scientific measurement of the distance between the bike’s key elements) improves the application of force during the pedal stroke, making every ride more efficient and easier on your joints.

INDUSTRY-LEADING ADJUSTABILITY

The handlebars adjust via an easy-lift lever and the seat adjusts with a turn-and-pull knob for an ideal fit, plus handgrip resistance controls make it easy to adjust the level of challenge without interrupting your workout.

SPECIFICATIONS

FRAME
Frame Type Dual Form step-through upright
Resistance System ECB magnetic braking system
Resistance Range 20 Levels, electronically adjustable
Flywheel Weight 10.5 kg / 23 lbs.
Seat Type Comfort Arc upright seat, interchangeable
Seat Adjustment Up / down via turn-and-pull knob
Handle Bar Type Multi-grip handlebars with resistance toggles and heart rate grips, adjustable console height, interchangeable
Pedal Type Self-balancing pedals with adjustable straps
Accessories Water bottle holder
CONSOLE
Wireless Requirements 802.11b/g/n in 2.4 GHz range, minimum speed 3 Mbps (5 Mbps for streaming in High Definition)
Display Type 16″ Class HD touchscreen (40 cm)
WiFi Enabled Software updates, ViaFit Connectivity, entertainment apps
Bluetooth Enabled Stream audio from phone, tablet, MP3 player; connect wireless headphones; connect wireless heart rate monitor
USB Port Software updates, charge device (up to 1 amp); stream media via USB flash drives, Windows phones / tablets, Android phones / tablets
Speakers 5 Watt
Console Apps Simple, Track, Virtual Active, Change Workout, Weather, MyMedia, Web Browser (other apps vary by market)
Virtual Active Integrated Yes
Passport Ready Yes
ViewFit Connectivity Yes
Heart Rate Wireless heart rate, Polar heart rate strap included
Console Extras Integrated reading rack, energy saver mode, audio in/out
Workout Programs 11 Total — Manual, Fat Burn, Rolling Hills, Intervals, Time Goal, Distance Goal, Calorie Goal, Target HR, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies
Workout Feedback Time Elapsed, Time Goal, Time Remaining, Clock, Miles / Kilometers, RPM, Current Speed (MPH / KPH), Pace, Average Pace, Heart Rate, Peak Heart Rate, Calories, Calories / Hour, METS, Resistance, Last Resistance
TECH SPECS
Assembled Dimensions (L x W x H) 109 x 64 x 120 cm / 43″ x 25.2″ x 47.2″
Assembled Weight 52 kg / 114 lbs.
User Weight Capacity 159 kg / 350 lbs.
User Height Range 150 cm – 193 cm / 4’11” – 6’4″
Electrical Requirements 120V AC power, 15A circuit (voltage may vary outside the USA)
Power Supply 12V / 2A Power adapter
