Squat Rack vs Power Rack: What Is the Difference?

These terms are used interchangeably in product listings and fitness forums, but they describe meaningfully different pieces of equipment.

A squat stand is the simplest format: two upright posts with J-hooks to hold the barbell, and nothing else. No cage, no integrated safety system. Appropriate for experienced lifters who train with a partner, have reliable bail technique, or are working at lighter loads. Not recommended for solo heavy lifting.

A half rack (or half cage) adds a pull-up station, additional J-hook positions, and in most cases a set of integrated safety arms or spotter bars. The rear of the structure is open. Better stability than a squat stand, with some safety redundancy, but the absence of full rear uprights means a missed lift at heavy loads requires the lifter to bail backward — which can be problematic without bumper plates or appropriate flooring. The Arrow half rack range covers compact and commercial configurations.

A full power rack (or power cage) encloses the lifter on all four sides with uprights at each corner. J-hooks and safety bars span the full width of the cage, so a failed squat or bench press can be safely caught at any point in the movement without a training partner. This is the commercial gym standard for good reason, and for solo lifters training heavy, it is the appropriate format for home and garage gym use as well. The Arrow power rack and rig range covers everything from entry home gym cages through to multi-bay commercial rigs.

Key Specifications Explained

Upright Dimensions and Steel Gauge

The uprights are the most important structural component of any rack. In 2026, the commercial and premium home gym standard is 100 x 100 mm uprights with 3 mm wall thickness. This dimension delivers the rigidity needed for heavy loading without flex.

Budget home gym racks commonly use 50 x 50 mm or 70 x 70 mm uprights with thinner steel. These are adequate for moderate loads and lighter training programmes. They are not appropriate for serious strength training, where upright flex under heavy axial load is structurally concerning over time.

When comparing racks, the upright specification is one of the most reliable proxies for overall build quality. The Arrow X9 Commercial Half Rack, for example, uses 4 mm steel construction — the specification that separates genuine commercial-grade engineering from machines merely marketed as commercial.

Weight Capacity

Stated weight capacity figures in rack marketing are frequently inflated and largely unregulated. A more reliable indicator of genuine load capacity is the combination of upright specification, welding quality at the base plate and cross-member junctions, and the specific rating method the manufacturer discloses.

For home gym lifters working up to 150–200 kg on squat and bench, a well-built mid-range rack with 75–100 mm uprights and solid welding will perform adequately. For competitive powerlifters, strength coaches, or commercial facilities, full-spec 100 x 100 mm / 3 mm construction is the correct choice.

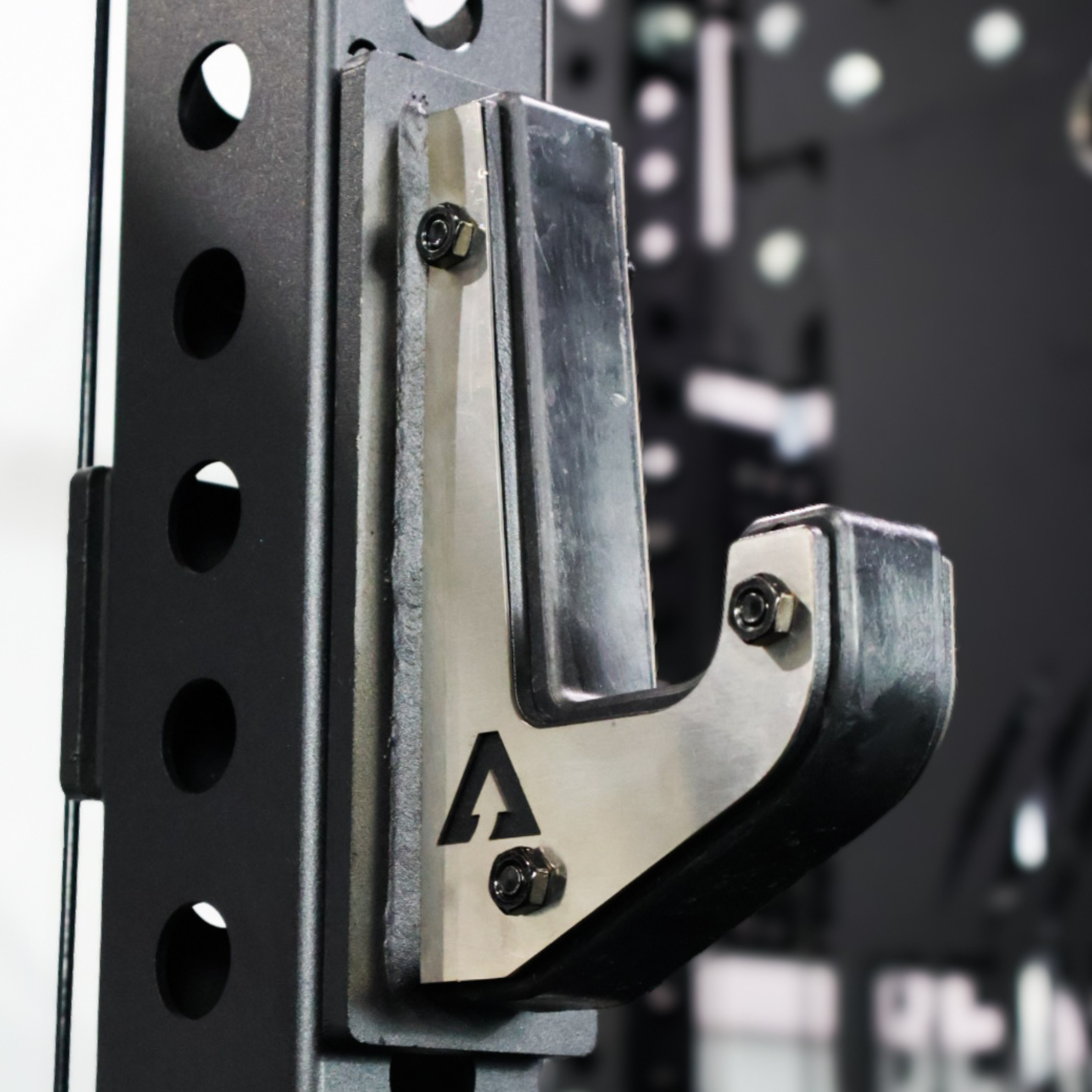

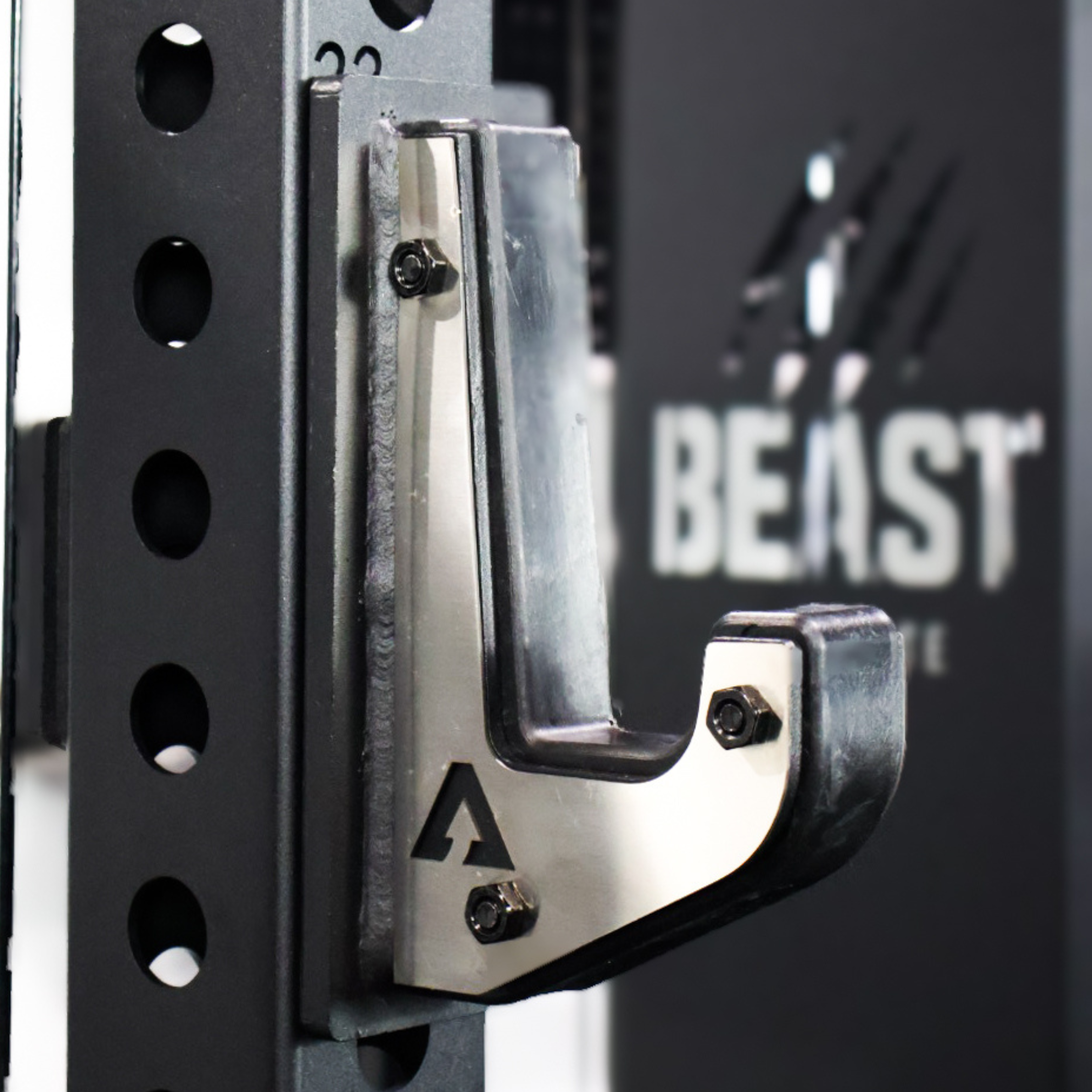

J-Hooks

J-hooks are the barbell cradles that hold the bar at the starting position for squats, bench press, overhead press, and other barbell movements. Quality matters in two ways: the hook's structural strength and the barbell contact surface.

Budget J-hooks use raw steel contact surfaces that scratch and damage barbells quickly. Quality commercial J-hooks use UHMW plastic inserts or chrome-lined contacts that protect your bar's finish and knurling. If you are investing in a quality Olympic or powerlifting barbell, protecting that investment through appropriate J-hook spec is worthwhile over the long term.

Safety Bars and Spotter Arms

Safety bars are what allow solo lifters to train to failure without a training partner. There are two main types:

Pin-and-pipe safeties use a horizontal steel pipe secured with a pin. Simple, reliable, and adjust quickly. Appropriate for most home gym applications.

Strap safeties use a horizontal nylon strap between the uprights. The strap has slight flex, which absorbs shock load from a dropped barbell more forgivingly than a rigid pipe — particularly relevant for bench press. The trade-off is that straps wear over time and require periodic replacement.

Westside vs. Standard Hole Spacing

Hole spacing on the uprights determines how precisely you can adjust J-hooks and safeties. The current best practice is 1-inch (25.4 mm) spacing across the full upright — sometimes called Westside spacing in the bench press zone. This means you can always get the bar at exactly the right height regardless of your build. When comparing racks, confirm whether 1-inch spacing runs the full upright height, or only in a central zone.

Half Rack vs. Full Power Rack: Which Is Right for You?

Choose a half rack if:

• You consistently train with a partner who can spot heavy sets

• Your ceiling height is under 2.4 m

• Your training load is unlikely to exceed 150–160 kg on squat or bench

• Floor space is limited and the open rear of a half rack matters for your layout

Choose a full power rack if:

• You train alone and intend to push to near-maximal loads

• You are building for the long term and want a rack that grows with your strength

• You want maximum safety redundancy on squat, bench, overhead press, and rack pulls

• You are buying for a commercial setting where multiple users will use the equipment

The safety argument for a full power rack when training alone is not theoretical. A quality power cage makes solo training to failure not just possible but safe — which in turn makes your training more effective.

Barbell and Cable Compatibility

Barbell compatibility. Most quality racks accommodate standard 2-inch Olympic barbells. Confirm the J-hook spread accommodates your barbell's knurl marks at a comfortable grip width. The full Arrow barbell range — covering Olympic bars, powerlifting bars, and specialty bars — is available to match with your rack.

Cable attachments. Many Arrow racks are designed to accept rack and rig cable attachments, effectively adding a cable training station to your existing rack without buying a separate machine. Check attachment compatibility before committing to a rack if cable work is part of your long-term gym plan.

Flooring. The rack, the loaded barbell, and any dropped weight all bear on your floor. Rubber gym flooring under the rack footprint reduces movement, absorbs impact, and protects both the floor and the equipment.

Ceiling Height: The Specification Most Buyers Forget

Full power racks typically require a minimum ceiling clearance of 2.4 to 2.7 m. Garage gyms with low rooflines or indoor spaces with dropped ceilings frequently fall short. Measure before you commit. For overhead press clearance, factor in your height plus arm extension plus bar travel, for a tall lifter, this can exceed 3 m from floor to ceiling at the top of the movement.

Commercial vs. Home Gym Racks: Key Differences

For commercial gym operators and PT studios, the selection criteria shift considerably. Multi-user durability, versatility across a wide ability range, and the availability of local warranty service all matter more than in a home gym context.

Commercial facilities with multiple racks should also consider rig systems — multi-bay linked rack configurations that share uprights and reduce footprint while increasing total training capacity. The full Arrow commercial strength equipment range covers these configurations, and our gym showcases and fit-outs page shows completed commercial installations from brief to final install.

Frequently Asked Questions

What is the difference between a squat rack and a power rack?

A squat rack is a simpler two-post design without a full cage. A power rack encloses the lifter on four sides with integrated safety bars, enabling safe solo training to failure. For most serious lifters, a power rack is the appropriate choice.

What squat rack should I buy for a home gym?

For a home gym where you train alone with moderate to heavy loads, a full power rack with 75–100 mm uprights, 1-inch hole spacing throughout, quality J-hooks with UHMW inserts, and pin-and-pipe or strap safeties is the correct choice. The Arrow power rack range covers multiple configurations at different price points.

What does Westside spacing mean on a squat rack?

Westside spacing refers to 1-inch hole spacing across the uprights, allowing precise barbell height adjustment for bench press and squat starting positions. The best racks in 2026 offer 1-inch spacing across the full upright height, not just in a central zone.

Can I add cable attachments to a squat rack?

Many Arrow racks are compatible with cable and rig attachments that add pulling and cable station functionality without buying a separate cable machine.

Ready to Choose?

If you are based in the Newcastle or Hunter Valley region, visit our East Maitland showroom at 1/23 Mitchell Dr, East Maitland NSW 2323, where Arrow squat racks and power cages are available to inspect, load, and test before you buy. Contact the Southern Cross Fitness team to discuss commercial requirements or arrange a showroom visit.

*References: NSCA (National Strength and Conditioning Association); Starting Strength by Mark Rippetoe.*
